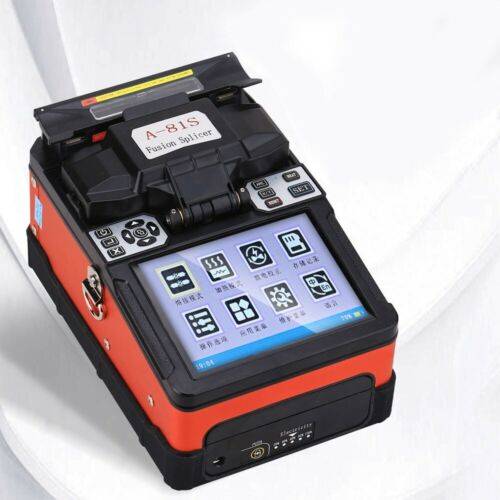

A-81S Fusion Splicer Fiber Splicer Core Alignment Fusion Splicing Machine FTTH Kit 7800MAH Battery

Features:
- Intelligent high-precision automatic splicing machine A-81S
- Six core technologies: 7-second fast splicing, 5.0" LCD display, 18-second fast heating, automatic fiber core alignment, 300 times focus magnification, Chinese and English switching
- Industrial-grade high-quality chips: fast boot in 2 seconds, splice in 7 seconds (heating time and temperature can be manually adjusted)
- 5.0" TFT color LCD display: clear picture, simple operation page, high working efficiency
- Widely used: FTTH, communications engineering, security monitoring, metropolitan area network lines, residential fiber optic transformation, power fiber optic cables
- Multifunctional fixture: Automatic splicing of optical fiber. Suitable for bare fiber, pigtail, jumper, covered wire, etc. The splicing position is equipped with LED lighting (Attention: When the electrode needle is used nearly 3000 times, the splicing loss will increase. The electrode needle needs to be replaced, otherwise it will affect the splicing index)
- Large-capacity lithium battery: 11.8V super power supply, charging time about 3.5 hours, continuous splicing and heating more than 200 times. Press to eject the battery pack
- External power adapter: input AC100-240V50/60HZ. Output DC13.5V/4.81A
- Focusing at 300 times, real-time enlargement of fiber: The core image is clear, and the splicing process is clear at a glance. Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS). Built-in memory can save 5000 latest results
- Fully automatic core alignment/fusion splicing: excellent workmanship, low loss, and good quality. Easily respond to various environmental conditions

More Details:
- Electrode/V-shaped groove: sharp top, uniform discharge, ultra-low loss. Active V-groove adjustment base
- USB interface comes with a dust cover: convenient for data download and update, data input and export
- 3D button/control panel: clear lettering and clear function buttons

Product Parameters:
- Applicable fiber: SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types
- Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
- Return loss: better than 60dB
- Typical splicing time: 7 seconds
- Typical heating time: 18 seconds (heating time can be set, heating temperature can be adjusted)
- Fiber alignment: fine alignment, core alignment, cladding alignment
- Fiber diameter: cladding diameter 80~150pm, coating diameter 100~1000pm
- Cutting length: coating layer less than 250μm: 8~16mm; coating layer 250~1000μm: 16mm
- Tension test: Standard 2N (Optional)

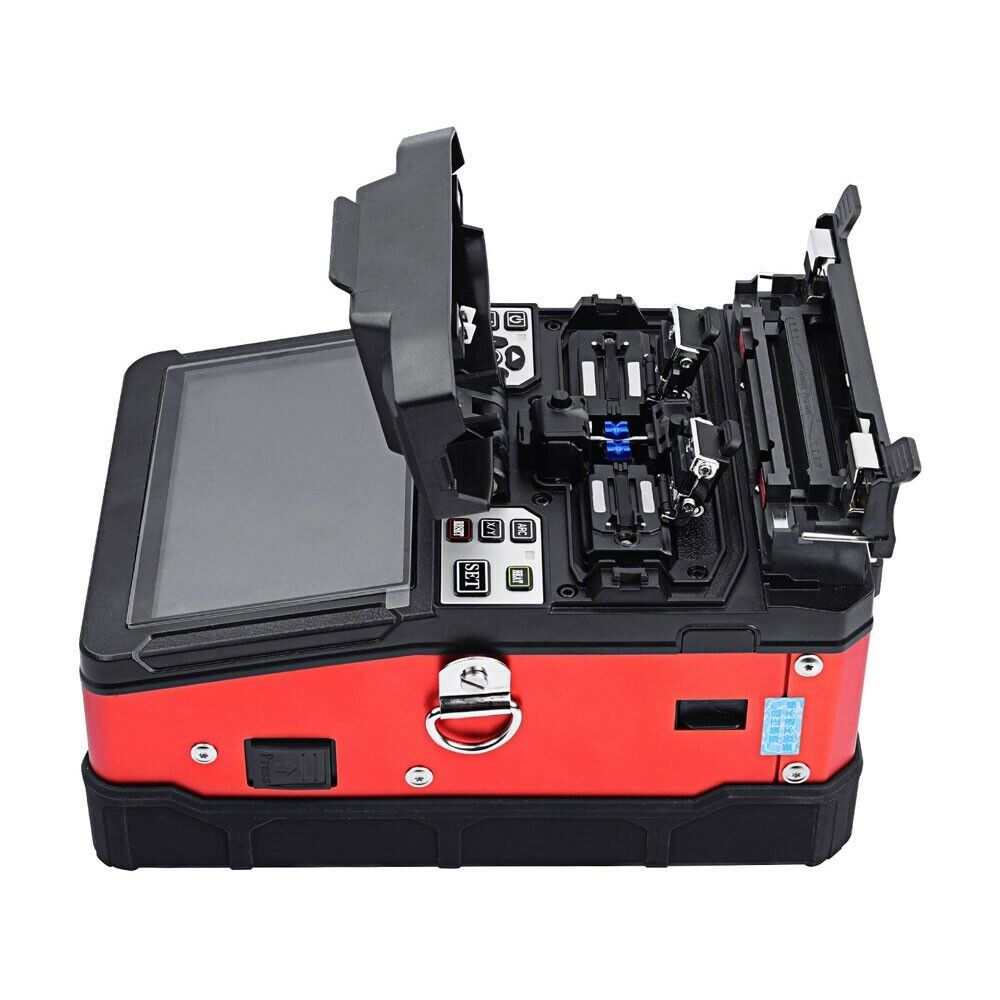

- Fiber Clamp: Multi-function clamp, suitable for bare fiber, pigtail, jumper, covered wire, replaceable clamp, can be applied to SC and other connectors for various FTTX fiber optic cables
- Magnification: 300 times (X axis or Y axis)
- Heat shrink tubing: 60mm, 40mm and a series of miniature tubing
- Display: 5.0-inch TFT color LCD, the display content can be flipped, convenient for two-way operation
- External interface: USB interface, convenient for data download and software update
- Splicing mode: 17 groups of use modes
- Heating mode: 9 groups of use modes
- Splice loss storage: Built-in memory saves 5000 latest splice results
- Built-in battery: continuous splicing and heating not less than 200 times
- Power supply: Built-in lithium battery 11.8V power supply, charging time ≤3.5 hours. External adapter, input AC100-240V, 50/60Hz, output DC13.5V/4.81A
- Power saving function: 15% lithium battery power can be saved in a typical environment
- Working environment: temperature: -10℃ to 50℃, humidity: <95%RH (no condensation); working altitude: 0~5000m, maximum wind speed: 15m/s

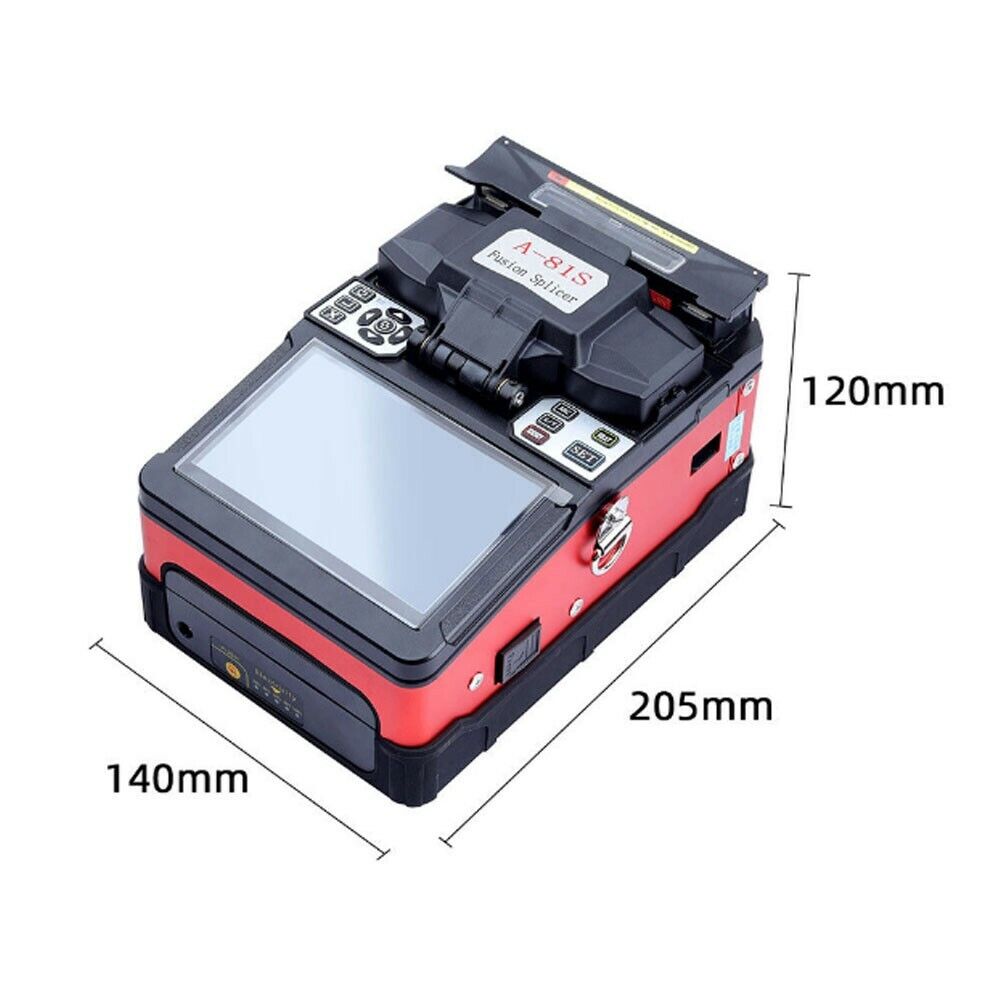

- Dimensions: 205 x 140 x 120mm (LxWxH)
- Lighting: Convenient to place fiber at night
- Net weight: 1906g (including battery)

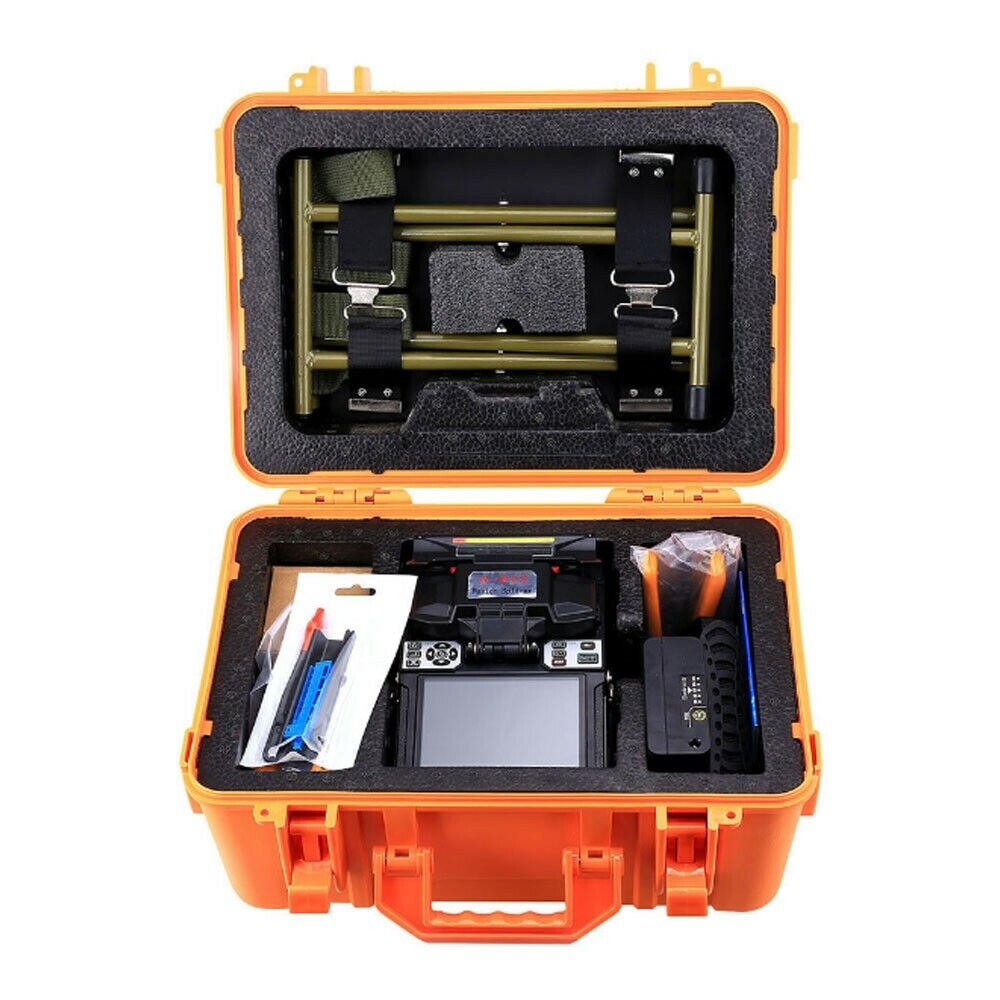

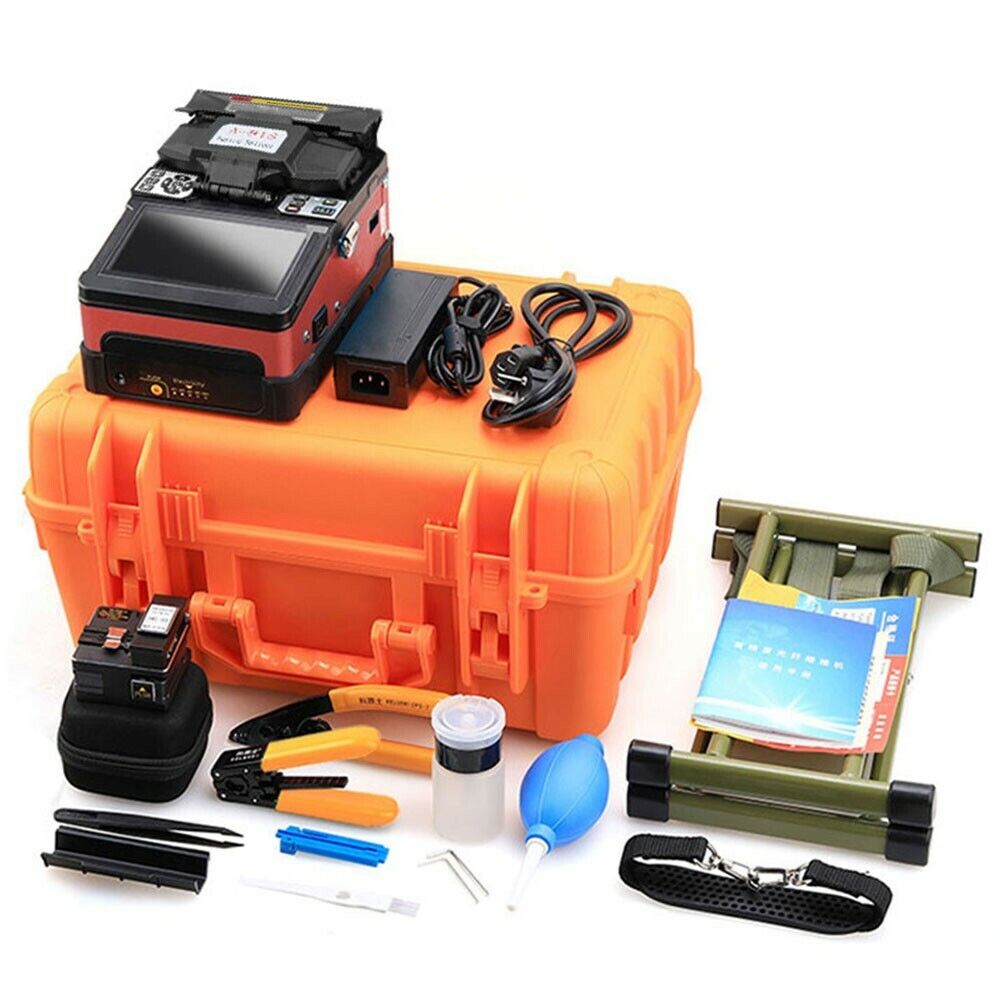

Package Included:
- 1 x Set of A-81S Fusion Splicer

DATASHEET
